Automatic Grain Rice Granule Packing Machine With Weighing Filling

Name: Automatic Grain Rice Granule Packing Machine With Weighing Filling
Brand: BOSHI
Price: 5000 USD

Brand Name : BOSHI

Model Number : BS-420 BS-520 BS-720

Certification : CE SGS

Place of Origin : Guangdong, China

MOQ : One sets

Price : 5000USD-18500USD per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 sets per year

Delivery Time : 10-15 working days

Packaging Details : Standard three plywood wooden cases

Machine type : Automatic Filling and Sealing Machine

HS CODE : 8422400000

Key words : Automatic Granule Grain Rice Weighing And Filling Machine

Function : Wrapping, Labeling, Sealing, date printing

Packing speed : 5-60 bags/min

Dimension(L*W*H) : L 1350 * W 1000 * H 1400 mm

Packaging Type : Bags, Film, Foil

Voltage : 110v/220v/380v/440v

Film thickness : 0.03-0.1mm

Driven Type : Pneumatic

Machinery Test Report : Provided

Core Components : Motor, PLC, Servo driver etc

Warranty of core components : 1 Year

Contact Now

Automatic Granule Grain Rice Weighing And Filling Machine

Main Features:

1) Simple but stable structure in linear type ,easy in installation and long life time.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.

4) English and Chinese screen display, operation is simple, other language is acceptable.

5) Advanced design and process for whole set of machine, strong structure, convenient operation and easy maintenance.
6) Standard positioning with servo film transporting system, ensure the machine can cut the bag in right position.

Applications:

Suitable for frozen product, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food, hardware and medicine such particle,

strip and irregular shape.

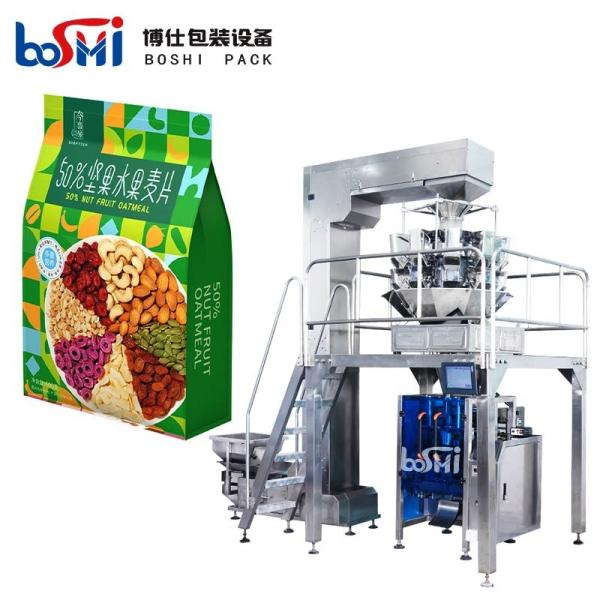

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Multihead weigher

3) Working platform

4) Main packing machine

5) Finished product conveyor

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG
